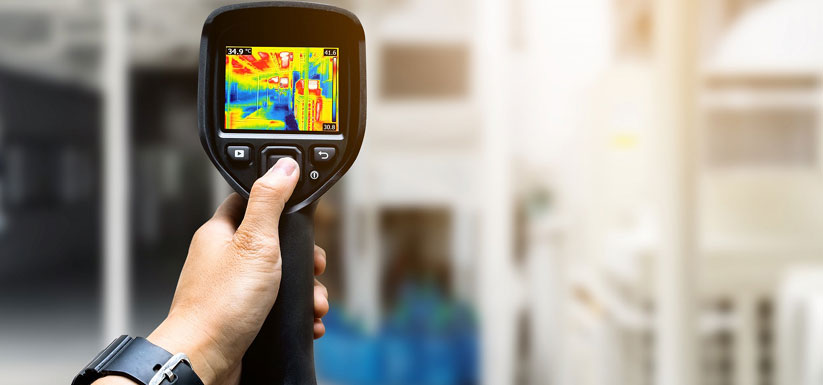

Thermal Camera helps in capturing hot spots effective with its high resolution imaging capability and accurate measurement sensors. The handheld device allows ease grip of the tool and can be used in any kind of operation with convenient data transfer techniques. The imaging data can be transferred to PC with various communication modes like Wifi, USB and over SD Card. With IR resolution range staring from 160x120 and upto 464x348 across various range of models.

Features:

•   Temperature Range: -20°C to 120°C (-4°F to 248°F) & 0°C to 650°C (32°F to 1200°F)
•   Detector Type and Pitch: Uncooled microbolometer, 17 μm
•   Thermal Sensitivity/NETD : <0.04°C @ 30°C (86°F), 24° lens
•   Spectral Range : 7.5 - 14.0 μm
•   Image Frequency : 30 Hz
•   Field of View (FOV) : 42° × 32° (10 mm lens), 24° × 18° (18 mm lens), 14° × 10° (29 mm lens)
•   Lens Identification : Automatic
•   Digital Zoom : 1-4x continuous
•   Display ; 4”LCD Screen , 640 × 480 pixel touch screen LCD with auto-rotation
•   Digital Camera : 5 MP, 53° × 41° FOV
•   Color Palettes : Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
•   Image Modes : Infrared, visual, MSX®, Picture-in-Picture
•   Storage Media : Removable SD card (8 GB)
•   Image File Format : Standard JPEG with measurement data included Video Recording and Streaming
•   Communication Interfaces : USB 2.0, Bluetooth, Wi-Fi, DisplayPort
•   Video Out : Display Port over USB Type-C
•   Battery Type : Li-ion battery, charged in camera or on separate charger
•   Battery Operating Time : Approx. 2.5 hours at 25°C (77°F) ambient temperature and typical use
•   Operating Temperature Range : -15°C to 50°C (5°F to 122°F)
•   Storage Temperature Range : -40°C to 70°C (-40°F to 158°F)

Automatic Thermal Imaging Camera with Software

Automatic Series of thermal imaging camera screens persons for elevated body temperature (EBT) entering the premises with its automatic capturing technology, and the output can be displayed on screen or PC. The output can also be monitored over ONVIF platform or can be used for other desired outputs. With almost zero personal intervention the thermal camera handles the screening process and records all observations for persons being scanned with time and date stamps.
The screening process displays real time views of persons and its fast operation allows it to be used in any environment.

Features:

•   Accuracy: +/- 0.25°C
•   Changes in ambient conditions: minimal or no effect
•   Measurement location: inner corner of eye
•   Calibration: 10 people, rolling average
•   Measurement method: comparison with rolling average
•   Face and eye detection: fully automatic
•   Temperature measurement: fully automatic
•   Installation: within 10 minutes#
•   Face and eye detection process: less than 50 ms
•   Temperature measurement process: less than 10 ms
•   Mass screening: 900 persons per hour (with safe distancing^)
•   Alarm threshold: user settable (0.5°C to 2.0°C above normal)
•   Alarms: visual and audible alarms
•   Location: indoor, or outdoor in a covered area
•   Report generation: Day-wise report and audit trail
•   Report format: printable, non-editable, pdf
